Configuration interface presentation

Accessing the configuration interface

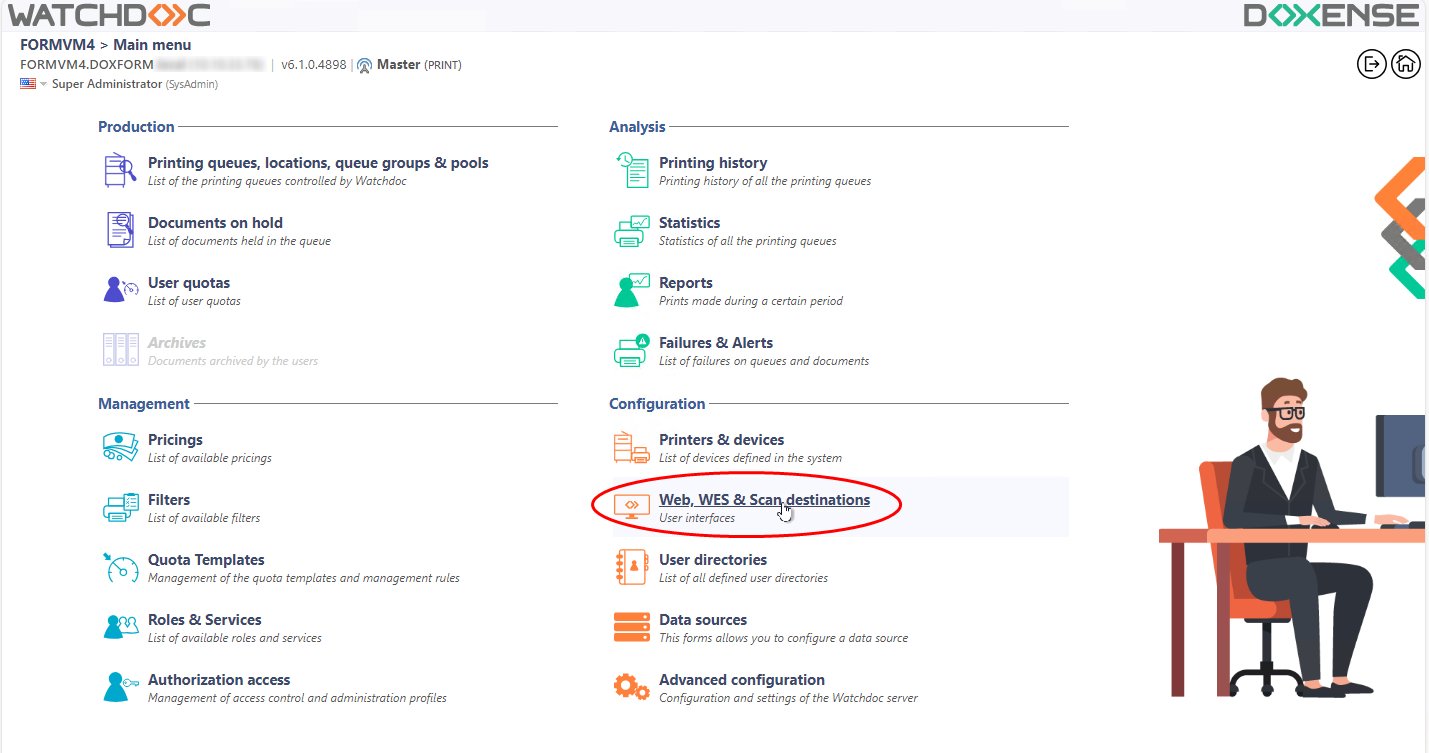

  1. From the Main menu interface,

  2. in the Configuration section, click on Web & WES templates:

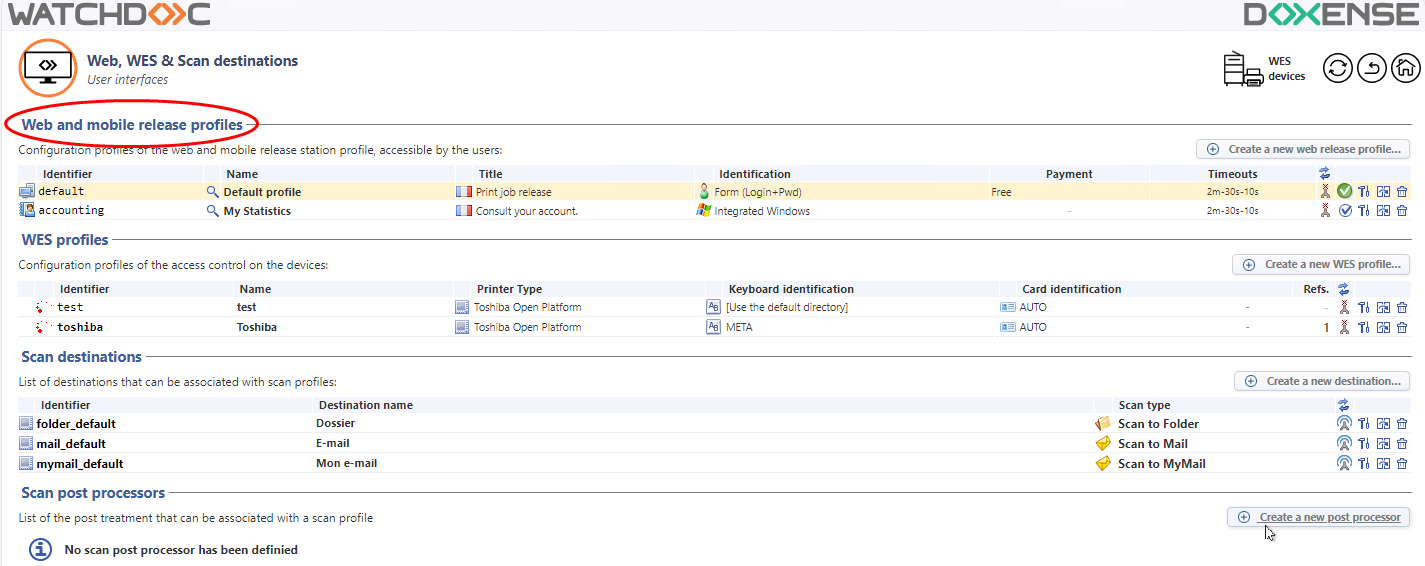

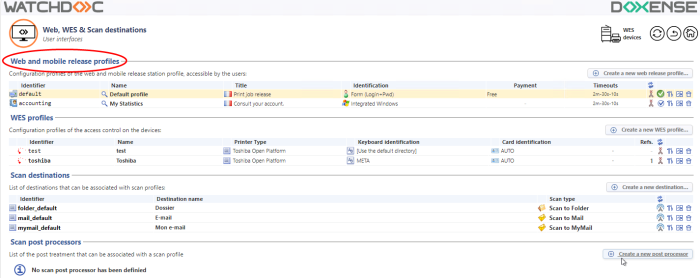

    → You will access the Web & Wes templates interface in which are listed the web release and the WES profiles:



Informations about the web release profiles list

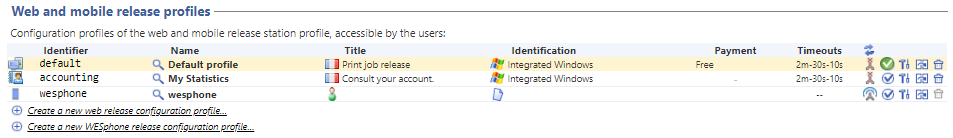

The list of Web and mobile release profiles displays all the web and the mobile realise (WESPhone) profiles created in the Watchdoc application:



Every line presenting a web profile comprises the following tools:

  • Identifier: the internal identifier of the web profile, only displayed in the administration interfaces;

  • Name: displays the name of the profile, more explicit than the identifier, only displayed on the administration interfaces;

  • Title: displays the interface's name as it is displayed to users, associated to an icon that specifies the language choice;

  • (or other flag) indicates the language in which the interface labels are written;

  • indicates that the interface is displayed in the language automatically associated to the user by the system;

  • indicates that the user can chose his language.

  • Identification: specifies the authentication mode used in the interface, with an icon;

  • specifies that the user authenticates himself entering his login and password in a form;

  • indicates that the user is automatically authenticated with his Window's account.

  • Payment: indicates the payment mode applied in the interface:

  • free: indicates that the printing is not subject to payment;

  • card: indicates that the user pays with a supplied card;

  • PMV: indicates that the user pays with a Virtual Purse, that is to say a Watchdoc own user account specifically supplied for his printing jobs;

  • external: indicates that the user must pay an agent that is allowed to release his print-jobs;

  • Timeouts: indicates, in minutes and seconds, the timeouts before refresh, disconnexion and automatic redirection.

Even if it may exist several web profiles, only one can be activated on a print server at a time.

Tools of the list

Every line presenting a web profile comprises the following tools:

  • the Test button allows to access to the interface, as it is configured and as it is displayed to the users;

  • the Edit button allows to open the profile in its configuration interface to configure it;

  • the Define as default profile allows to define the profile as default one, primarily used by Watchdoc. In the list, the default profile is highlighted and preceded by the icon

  • the Duplicate profile button allows to take a profile as a model to create a new profile instead of configuring it from scratch.
    Before using the Duplicate tool, check there will no have more parameters to change than to keep.

  • the delete this profile button is used in the case that the profile is useless.
