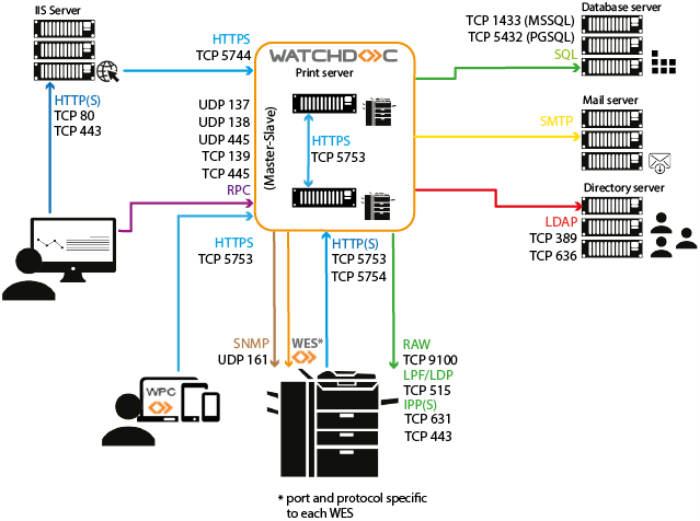

Network architecture

Network ports and protocols

Network ports matrix

The network ports to open are the following:

Source Port Protocol Target
WES (Watchdoc Embedded Solution) on printing device TCP 5754
or 5753		 HTTP
HTTPS		 Watchdoc service (core) - print server
Watchdoc web site (IIS) TCP 5744 Dotnet protocol Watchdoc service (core) - print server
For security reasons, Doxense does not recommend configuration in remote mode, which requires port 5744 to be opened. If port 5744 is to remain open, we recommend only allowing communications from servers in the Watchdoc domain.

Web Browsers : web interfaces TCP 80
TCP 443		 HTTP
HTTPS		 Watchdoc web site (IIS)
Watchdoc Service (core print server) TCP 1433 SQL DataBase server Microsoft SQL®
Watchdoc Service (core print server) TCP 5432 SQL PostgreSQL
Watchdoc Service (core print server)   ICMP Printing devices
Watchdoc Service (core print server) UDP 161
UDP 162		 SNMP Printing devices
Watchdoc Service (core print server) TCP 9100
TCP 515
TCP 631
or TCP 443		 RAW
LPD
IPP
IPPS		 Printing devices
Watchdoc Service (core print server) TCP 389
TCP 636 		LDAP Protocol SSL Users Directory Server
Watchdoc Service (core - print server) or user browser TCP 5756 HTTPS Watchdoc Supervision Consol (WSC)
Watchdoc Print Client for... TCP 5753 HTTPS Watchdoc Print Server & Watchdoc Master (if exists)
Watchdoc Notification Server TCP 445 SMB Users workstations
Watchdoc TCP 5751



 Watchdoc Notification
Watchdoc TCP 443 HTTPS WES - Watchdoc Embedded Solution - Lexmark (in some specific configurations).
If there is a firewall in the infrastructure, this firewall must allow accesses to the server on wich Watchdoc is installed.  WSD (Web Services for Devices) technology is not supported by Watchdoc.

WES ports matrix

The network ports to open for the WES are the following:



Labels Source Port Protocol Target
Canon Watchdoc TCP 8000
TCP 8443		 HTTP
HPPS		 Printing device
Epson Watchdoc
for authentication, secure port required 		TCP 80
TCP 443		 HTTP
HPPS 		Printing device
Hewlett-Packard Watchdoc

TCP 57627

TCP 7627

HTTP
HPPS
Printing device
Konica Minolta Watchdoc TCP 50001
TCP 50003		 HTTP
HPPS 		Printing device
Kyocera Watchdoc

TCP 50001
TCP 50003

 HTTP
HPPS 		Printing device
Lexmark Watchdoc TCP 80
TCP 443		 HTTP
HPPS 		Printing device
Toshiba
OEM Lexmark		 Watchdoc TCP 49629
TCP 49630		 HTTP
HPPS
Printing device
Ricoh Watchdoc TCP 80
TCP 443		 HTTP
HPPS
Printing device
SharpOEM LExmark Watchdoc TCP 80
TCP 443		 HTTP
HPPS
Printing device
Xerox
SNMP required for installation		 Watchdoc
accounting (jba)
for authentication, secure port required



TCP 80
TCP 80
TCP 443



HTTP
HTTP
HTTPS

Printing device



The network ports to open for the WES Konica Minolta are the following:

Marque Source Port Protocole Target
Konica Minolta Watchdoc 80 Non-SSL WebDAVClosed Transfer protocol enabling files or entire directories to be made available via the Internet and transmitted to various devices (including printing devices). (Source: Ionos.fr)*

KM device
  Watchdoc 50003 https KM device
  Watchdoc 50001 http KM device
  Watchdoc 59158 OpenAPI KM device
  Watchdoc 59159 OpenAPI KM device
  Watchdoc 59160 OpenAPI KM device
  KM device 5753 https Watchdoc
  KM device 5754 http Watchdoc

Interserver port matrix

The network ports to activate the interserver printing are the following:


Source Port Protocole Target

Server of the domain

 TCP 5753 HTTPS
SSL		 Server of the domain
Watchdoc service 9100 RAW
IPP/IPPS
 Printing devices
