Description of WCM commands



LIST

The outcome of the LIST command displays:

  • the server on which the search was performed (e.g. http-server);

  • the date and time at which the search was performed (e.g. 2016-02-02 12:33);

  • the expiry date and time of the certificate (e.g. 2040-01-01 00:59);

  • the type of certificate hash algorithm (e.g. sha256RSA);

  • the name of the certificate domain (e.g. CN= YTWIN2012R2.DEV.doxense.local).

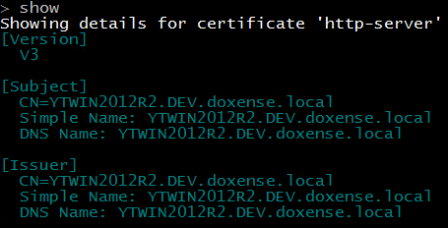

SHOW

The following information is displayed after the LIST command:

  • ChampVersion: version X.509 of the certificate;

  • Subject: CN, Simple Name and DNS Name of the server associated with the certificate;

  • Issuer: CN, Simple Name and DNS Name of the certificate issuer;

  • Serial Number: serial number of the certificate;

  • Not Before: date and time of start of certificate validity;

  • Not After: date and time of end of certificate validity;

  • Thumprint: certificate hash;

  • Signature Algorithm: algorithm used to encrypt the signature of the certificate;

  • Public Key: public key;

  • Private Key: private key;

  • Extensions : certificate extensions.



Checks performed to establish certificate validity:

  • OK! (green): no problems were detected

  • /!\ (yellow): : warning

  • /!\ (red):: error and possible cause of an anomaly encountered with this certificate:




Points checked:

  • Date of certificat validity;

  • Self-signed certificate: the issuer has signed the certificate itself. This is Watchdoc's default setting;

  • Signature algorithm: if the algorithm used is recognised as obsolete, a warning is displayed;

  • Algorithm and key size;

  • Certificat validity outcome.

CREATE <certificat ID>

After creating the certificate, the following information must be entered:

  • Primary Host Name: use the server's host name;

  • More IP or DNS (use ';' as a separator): possibility of adding additional information, hostname and IP address specified by default;

  • Expiration date ('yyyy-mm-dd')? : possibility of entering the expiration date (by default today's date + 10 years);

  • RSA Key Size (2048 by default) possibility of entering the RSA key size in bits. 2048 bits by default;

  • a summary of the certificate characteristics is then displayed. Enter a to cancel, n to reject or y to confirm:

  • a: certificate creation is halted;

  • n: you are asked for the creation information again;;

  • y: the certificate is created.



Certificate's PRIVATE Key is displayed in red, the Certificate's PUBLIC Key is displayed in green, and the Certificate Signing Request is displayed in cyan;

Saving the certificate requires it to be stored in Watchdoc's installation folder. Remember to start WCM with a profile having the necessary rights.

TEST [URI] [protocol]

  • URI : if the URI is not entered, WCM uses the following value: https://127.0.0.1:5753/

  • protocol : if no value is entered, WCM uses Watchdoc's values. Only one protocol option can be entered. The following possible values can be used:

    • --ssl2 : SSL v2 only

    • --ssl3 : SSL v3 only

    • --tls10 : TLS 1.0 only

    • --tls11 : TLS 1.1 only

    • --tls12 : TLS 1.2 only

    • --weak : SSLv2 et SSLv3

    • --strong : TLS 1.0, 1.1 et 1.2

    • --all : All protocols

(See SHOW command for more information on the fields displayed).

SERVER [port|IP:port [id certificat] ] [protocol]

  • protocol :

    • --ssl2 : SSL v2 uniquement

    • --ssl3 : SSL v3 uniquement

    • --tls10 : TLS 1.0 uniquement

    • --tls11 : TLS 1.1 uniquement

    • --tls12 : TLS 1.2 uniquement

    • --weak : SSLv2 et SSLv3

    • --strong : TLS 1.0, 1.1 et 1.2

    • --all : All protocols

Example with the following command: server 5753 acme

Note: port 5753 is used by Watchdoc; the service should therefore be stopped before running the command.

  • If the following address is entered in the web browser: https://NomDeMonServeur:5753, WCM displays the following outcome :

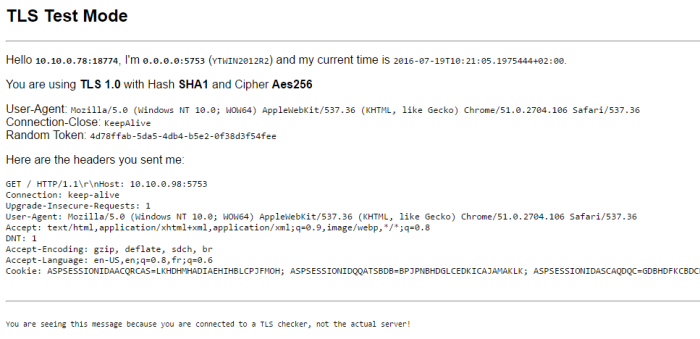

  • The following outcome is displayed in the browser:
