Ricoh WES - Prerequisites and prior configuration

Configure ports

The network ports to open are the following:



Source Port Protocol Target
Watchdoc TCP 80
TCP 443		 HTTP
HPPS
Printing device

Configure the cards reader

Principle

If users authenticate using a card, it is necessary to install and configure the cards reader before installing the Ricoh SOP Gen2 WES.
Ricoh® printing devices have a generic plug-in installed by default that can handle most cards readers, including the Elatec® brand cards readers that Watchdoc has been tested with. Consequently, in the most common installations, it is not necessary to install the Elatec® plugin.

Procedure

To configure the cards reader:

  1. connect the card reader to the device;

  2. from the printing device panek, click on User Tools;

  3. then click on Screen Features > Screen Device Settings > IC Card/Bluetooth Software settings or External Device Setting for the gen 2.5 printing devices);

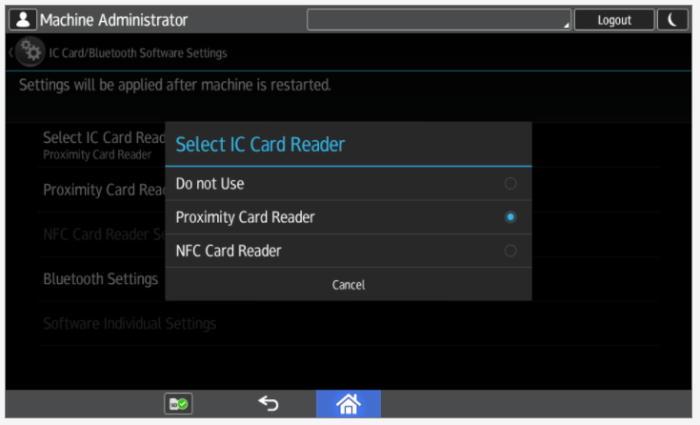

  4. in Select IC Card Reader, choose Proximity Card Reader Support Plugin ;



  1. follow the instructions on the screen:

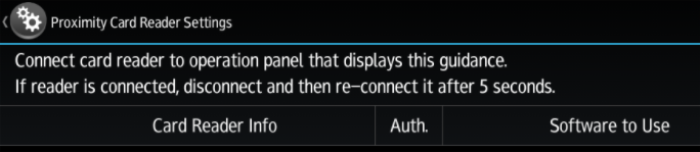

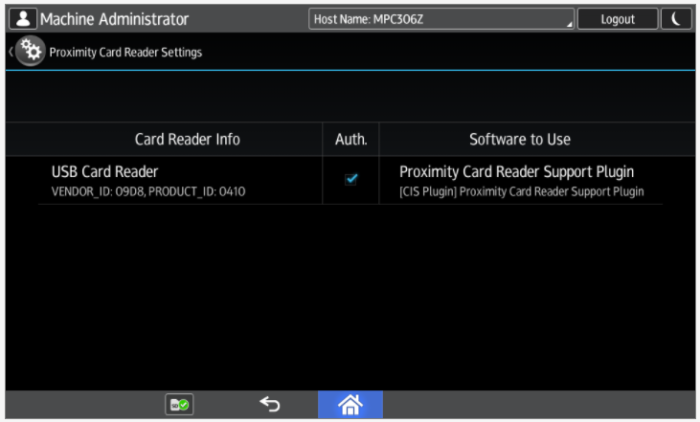

  1. when the badge reader is detected, click on the corresponding line to select the software associated with its use(Proximity Card Reader Support Plugin) ;



  1. after configuring the badge reader, restart the printing device.

Configure the SP modes

Principle

To enable the WES to operate, certain SP Mode settings need to be changed.

This modification is made from the device and requires authentication as an administrator. Only technicians authorised by Ricoh® and who have the access procedure are authorised to make these settings.

Configure the 5-113-002 SP Mode

This parameter is used to customise SDK/J authentication (OPTIONAL_COUNTER_TYPE__EXTERNAL_OPTIONAL_COUNTER_TYPE).

  1. in the SP Mode (Service) interface, enter the code for the SP mode to be modified: 5-113-002-;

  2. Expansion device: replace the existing value with 0.

Configure the 5-401-230 SP Mode

This parameter authorises personalised user authentication:

  1. access the SP Mode interface by following the specific procedure provided by Ricoh® ;

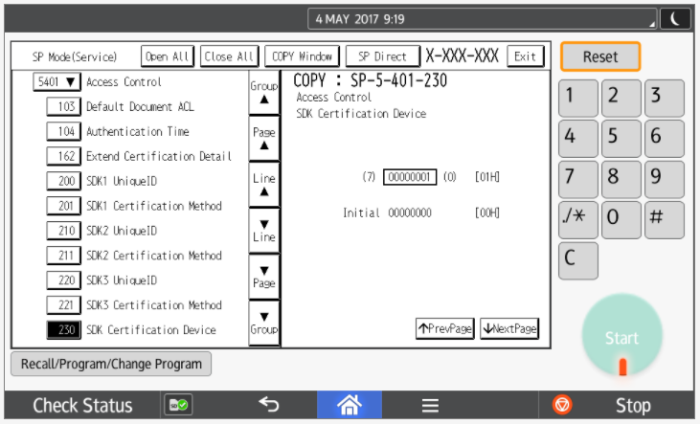

  2. in the SP Mode (Service) interface, enter the code for the SP mode to be modified: 5-401-230 ;

  3. the default value is 00000000. Replace the last digit of this value with 1 (00000001);

  4. press the pound (#) button to confirm the new value and exit the interface;

This configuration must be finalised in the device management web interface (see Installing the WES manually).

Configure the 5-401-240 SP Mode

This parameter authorises management of Watchdoc security profiles (ACL).

  1. From the SP Mode (Service) interface, use the numeric keypad to enter the code for the SP mode to be modified: 5-401-240 ;

  2. by default, the parameter value is 0000

  3. replace with the value 1000.

Configure the 5-420-041SP Mode

This parameter disables authentication for device functions:

  1. from the SP Mode (Service) interface, use the numeric keypad to enter the SP mode code to be modified: 5-420-041 ;

  2. by default, the Printer Authentication parameter is set to ON(0) ;

  3. enter OFF(1) to change the default value.


  1. confirm the parameter by clicking on the hash key # on the numeric keypad.

Configure the 5-490-001 SP Mode

This parameter authorises printing on the server:

  1. from the SP Mode (Service) interface, use the numeric keypad to enter the SP mode code to be modified: 5-490-001 ;

  2. the value of the Job Permit Settings parameter is set to Not allowed (0) by default;

  3. enter the value Allowed (1) to change the default value and allow print jobs.



  1. confirm the setting by clicking the hash key # on the numeric keypad.

è With this setting, print jobs are executed with the default user name 99999999
