SNMP Walker - Capture walks



Download the procedure Capture walks with SNMP Walker.

Procedure

Access to SNMPWalker

To access the SNMPWalker tool:

1. access the Watchdoc server as administrator ;

2. using an explorer, access the SNMPWalker folder saved by default in: C:/Programs/Doxense/Watchdoc/Tools/.

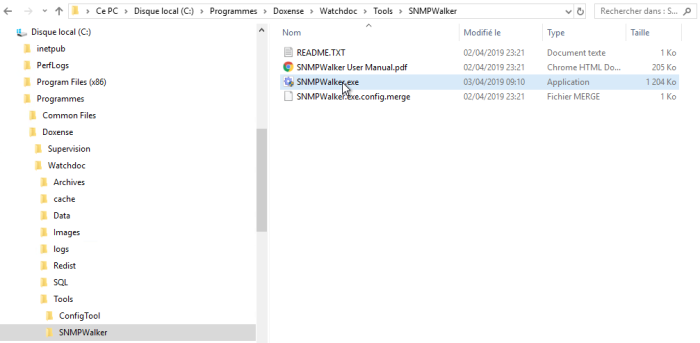

3. The SNMPWalker.exe executable can be found in the SNMPWalker folder:



Use SNMPWalker

To obtain an SNMP walk :

1. click on the executable SNMPWalker.exe ;

2. in the Doxense SNMP Walker tool, click on the Search Devices button;

3. in the Network SNMP Scanner tool, select the network IP to be scanned, then click Scan :

4. In the list of detected devices, double-click on the I.P. of the device whose data you want to study;

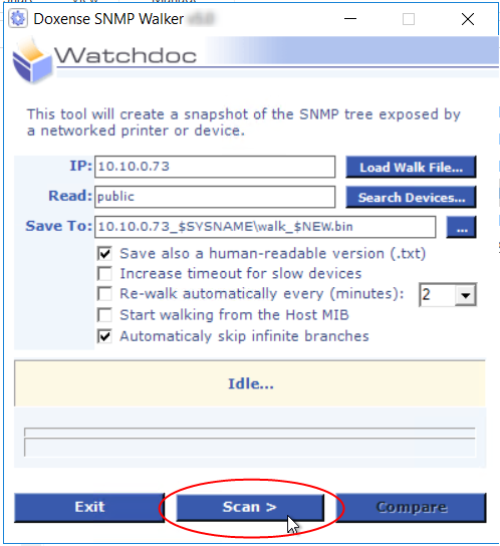

5. from the window in which the device to be scanned is selected, click on the button to start the scan:

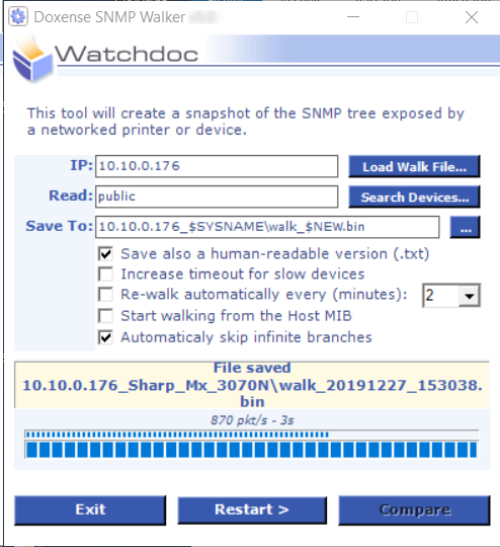

è A cursor indicates the progress of the analysis. At the end of the operation, a message indicates the file in which the analysis is saved. By default, this file is saved in \Doxense\Watchdoc\Tools\SNMPWalker and bears the name of the scanned device:

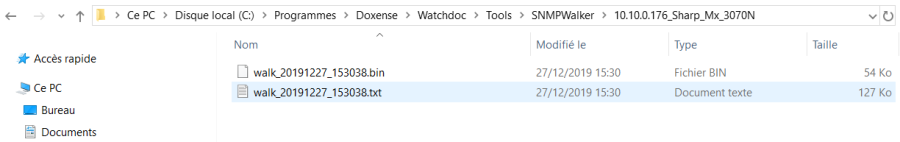

è In the SNMPWalker folder, open the walk[...].txt and walk[...].bin files to read the analysis and or send them to the Doxense Support team:
